Wall Mount Series

• Models: WM4, WM5, WM6, WM7.5, WM9, WM10.5
• Output: 4-10.5 kW
• Room size: 200-525 cu.ft
• Electrical: 240V; Single phase
• Operating Pressure: Atmospheric
• Electronic Control Module: P.C. board to control the heating unit, water level and flush drain using a specific application, factory preset microprocessor

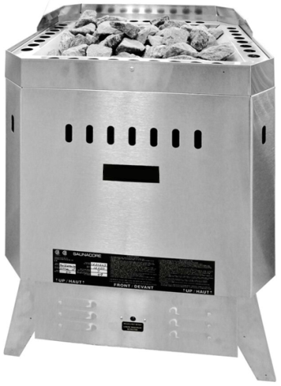

Floor Mount Series

• Models: FM9, FM10.5, FM12, FM15, FM18, FM21
• Output: 9-21 kW
• Room size: 450-1050 cu.ft
• Electrical: 240V; Single phase or 3 phase
• Operating Pressure: Atmospheric
• Electronic Control Module: P.C. board to control the heating unit, water level and flush drain using a specific application, factory preset microprocessor

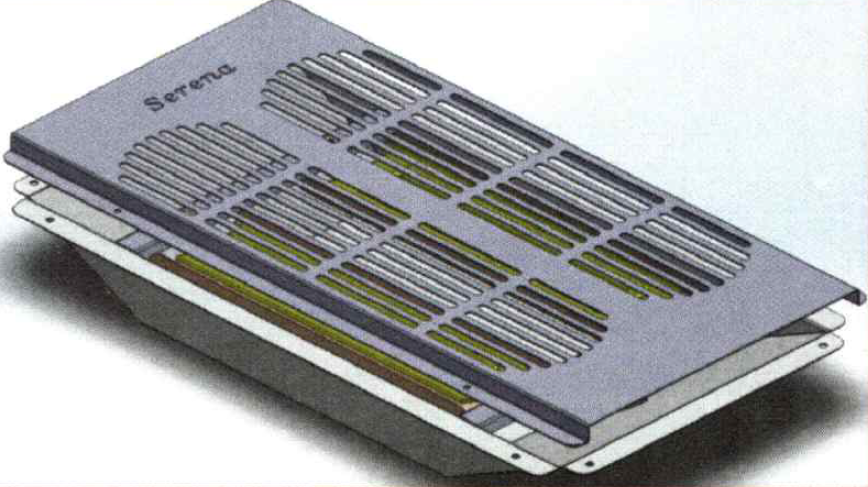

Infrared Emitter (Ceramic)

• Models: IRE-2
• Output: 355 W per panel
• Room size: Any
• Electrical: 120V/panel; Single phase

Features:

• Stainless steel housing
• Reflector and Heat shield
• High limit switch
• Concave, Non Corrosive
• Low Electromagnetic Field Radiation Glazed

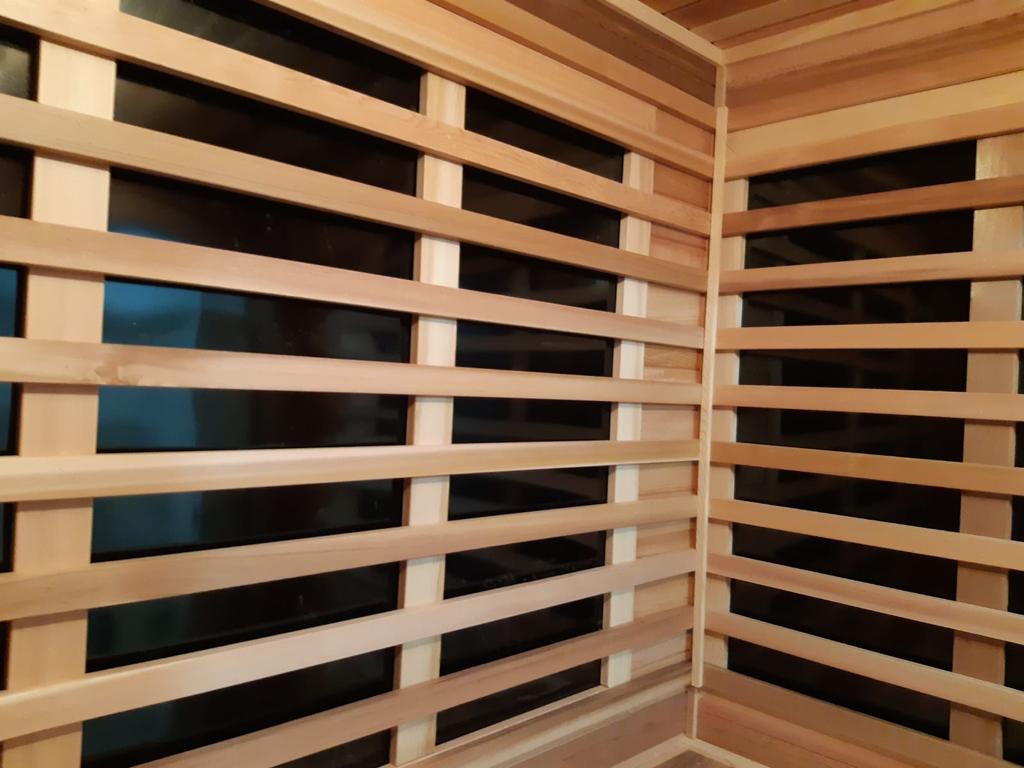

Infrared Panels (Carbon)

• Models: IRP-1
• Output: 300 W per panel
• Room size: Any
• Electrical: 120V/panel; Single phase
